SURGICAL SCRUB STATION / WASH BASIN & Pass Box

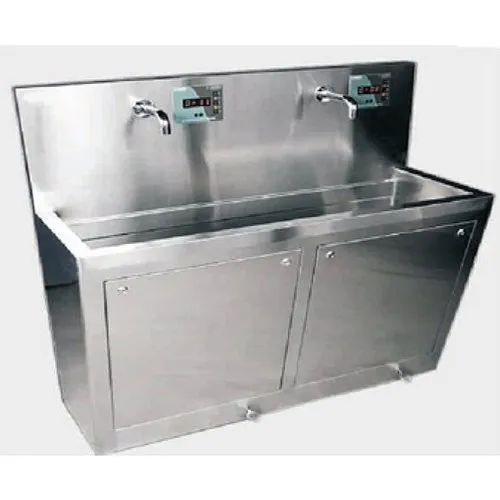

SURGICAL SCRUB STATION / WASH BASIN

Product Description

We are engaged in providing a wide range of Surgical Scrub Sink to our clients. Our modular operating theaters are equipped with stainless steel surgical sinks. We design and manufacture according to the layout plan of operating theaters. Our manufactured Surgical Scrub Sinks are easy to maintain and durable.

Product Specification

Material Stainless Steel
Colour SS
Grade Automatic/Manual/Auto-Manual
Hight 1.2m


OPTIONAL :-
FOOT OPERATED
HAND OPERATED
KNEE OPERATED
SENSOR OPERATED WITH TIMER
SOAP DISPENSOR WITH SENSOR / WIHTOUT SENSOR

Model SEI-SSS-1 SEI-SSS-1 SEI-SSS-2 SEI-SSS-2 SEI-SSS-2 SEI-SSS-2
TAP 1 1 2 2 3 3
Length in FT. 2 3 4 5 5 6

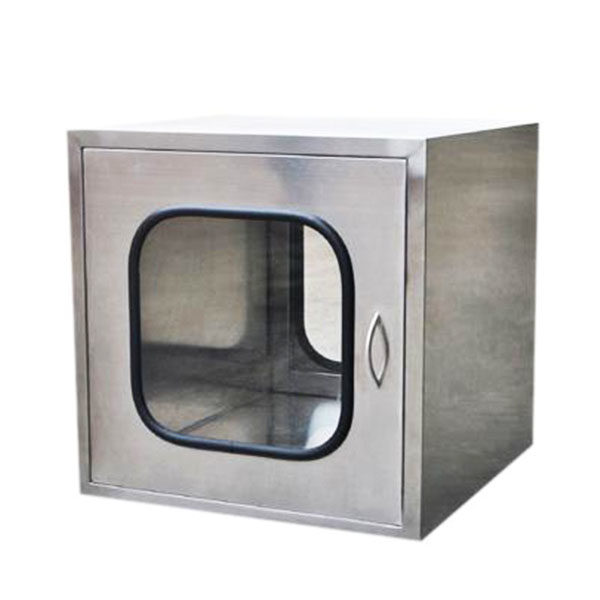

Pass Box

We are the most trusted Dynamic Pass Box Manufacturer, Supplier and Exporter from India. Our precision-engineered Dynamic Pass Box assists in transfer of materials driven through a controlled environment but without much personnel movement. Furthermore, this box helps in prevention of contaminants entrance either in the clean room or between various classified areas. Dynamic Pass Box that we deliver in the market is accessible at most economical prices.

Specifications :-
Used for transfer of material from and into the clean room without contaminating the clean room air and without opening the clean room door. Equipment under this schedule conform BIS certification standards, approve of which shall have to be submitted along with the bid.

* MOC : SS 202/304

* Velocity 90-110 FPM at filter face

* Final supply filter :-HEPA air filter, efficiency 99.97% down to 0.3 micron. Casing :- Factory extruded AL section.

* Fresh Air Filter:- Per filter efficiency 99.9 % down to 20 micron. Grade; CASING:- Aluminium Anodised

* Blower Motor Assembly :- Electric motor -0.1HP, I phase

* Doors:- Double walled sand witched door with glass view window with support SS frame, handles, hinges and gasket on both sides. Electromagnetic door interlocking with indicating lamp on both side.

Fluorescent light and the motor blower unit or automatically put on at the time of opening any one of the door.

* Clean air through HEPA filter is put ON immediately automatically opening any door

* Inter locking arrangement to put OFF UV light if either door opens and ensures that door will remains lock if blower fail.

* Provision of UV light to switched ON and OFF from the outside switch UV light should be permanently OFF unless switched ON.

Magnetic latch for both door even after power failure door will be lock.

Model Work Area Dimension
(L x W x H)
SEI-PB-125 18” x 18” x 18”
SEI-PB-250 24” x 24”x 24”
SEI-PB-350 24” x 24” x 36”
SEI-PB-500 24” x 36”x 36”
