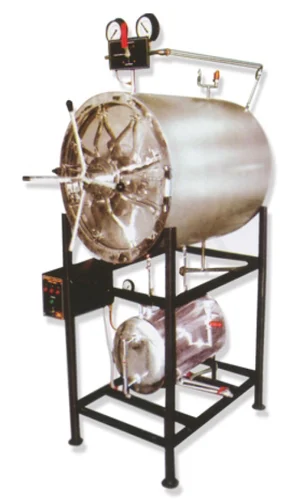

Horizontal High Pressure Cylindrical Steam Sterilizer

CONSTRUCTION

Handsomely Made For Long Service and to provide easier and surer Sterilization for use in Hospitals, Nursing Homes, Pharmaceutical Industries and Laboratories.

CONSTRUCTION: Both chambers, back plate, ring and steam generator are made of strong 304 G / 316 stainless steel. All joints are strongly argon welded and completely leak proof. The outer jacket is thickly insulated which prevent heat loss due to radiation and covered with stainless steel sheet for elegance. All sterilizers are hydraulically tested upto 2.5 times of working pressure. By mean of steam under pressure of 5 to 22 PSI ± 3 PSI (Adjustable). The unit is fitted with PID controller, timer alarm, Automatic pressure control switch, water level indicator, Temperature gauge, vacuum breaker and vacuum drying facility with Moisturizing trap. Mounted on tubular M.S. frame with ground levelling flanges.

SAFETY DOOR: Provided with a positive radial locking safety door with neoprene rubber/ silicon gasket which cannot be opened while the chamber is under pressure and disengages automatically when chamber is exhausted. This affords complete safety to the working personnel against explosive opening.

Note : Sterilization cycle is controlled by three way valve or multiport valve (Optional) Technical Specification :

Size Cap.Approx. Element Load
A) 400x600 mm (16"x24") 75 ltrs. 9 KW (1Pc.) 9KW
B) 400x1200 mm (16"x48") 150 ltrs. 6 KW (2Pcs.) 12KW
C) 500x900 mm(20"x36") 176 ltrs. 6KW(2Pcs.) 12KW
D) 500x1200 mm (20"x48") 235 lfts. 6KW(2Pcs.) 12KW
E) 600x1200 mm (24"x48") 339 ltrs. 9KW(2Pcs.) 18KW


Note: Working sterilization temp. 121°C/134°C Power Supply 440V, 3 Phase Power supply, Single phase, 220V AC on request

OPTIONAL ATTACHMENT AT EXTRA COST:

1) S.S. Stand.

2)Digital timer and temperature Display.

3)Double door system.

4) Working sterilization temp. 134°C on request

5) Automatic control system with software, solenoid valve and printer. i

Model Inner Dimension Capacity Ltr. Heater Load Sterilization temp & Pressure Operating Pressure
SEI – HAC – 110 16”x 24” 75 6 kW 1.2 Kg/cm2 (15-18psi) at 121°C From 10 psi to 20 psi
SEI – HAC – 120 18” x 24” 100 6 kW
SEI – HAC – 130 16” x 44” 140 9 kW
SEI – HAC – 140 22” x 30” 180 12 kW
SEI – HAC – 150 20” x 48” 250 12 kW
SEI – HAC – 160 24” x 48” 340 14 kW


NOTE: CUSTOMIZED SOLUTION ALSO AVAILABLE ON REQUEST
